Spiral freezer

SKU: spiral-freezer Category:
[basel_title tag=”h2″ title=”Products Description”]
IQF freezer applications

IQF is an abbreviation for “individually quick frozen”, a process that freezes food rapidly so there is minimal damage to the cellular structure of the food.

STRUCTURE of Spiral freezers:

1. Special Air Curtain
2. Spiral Belting
3. Stainless steel Fan
4. Belt Tension Device
5. High-Quality Evaporator
6. Auto Washing System
7. CIP auto washing system
8. Patented Airflow System
9. Advanced Overturn-proof
10. Top Class S. Steel Mesh Belt

We design spiral equipment that is built to your specifications and space. A variety of design options, such as a double drum or single drum, are available to ensure that your machining line is operating at optimum performance.

spiral freezer layout
[basel_title tag=”h2″ title=”Details of Spiral Freezers”]

Data of single spiral freezer and double spiral freezer

single spiral freezer double spiral freezer
Type Spiral freezer
Hoses Material Stainless steel
Refrigerant R717
Door type hinged door
Door Material Stainless Steel
Cooling Capacity(kg/h) 500-4000 500-3500
Temp.in(℃) 50 50
Temp.out(℃) -18 -18
Chamber Temp(℃) -35 -35
Freezing Time(min) 20-60 20-60
Belt Width(mm) 650-1067 450-650


Different Infeed/Outfeed Structure Option Based On Clients Requirement

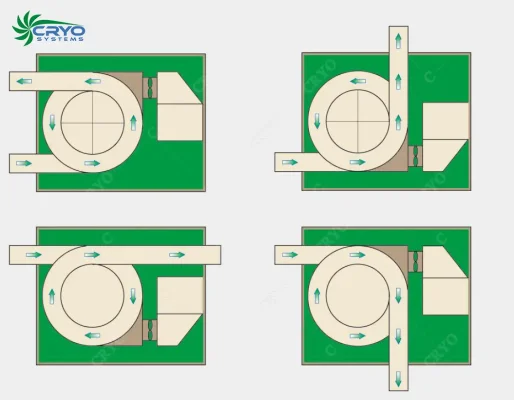

single spiral freezer layout
Single spiral freezer

A single spiral freezer is a highly efficient freezing system that can freeze a large quantity of products in a limited space
The freezing capacity is between 300kgh to 4000kg/h

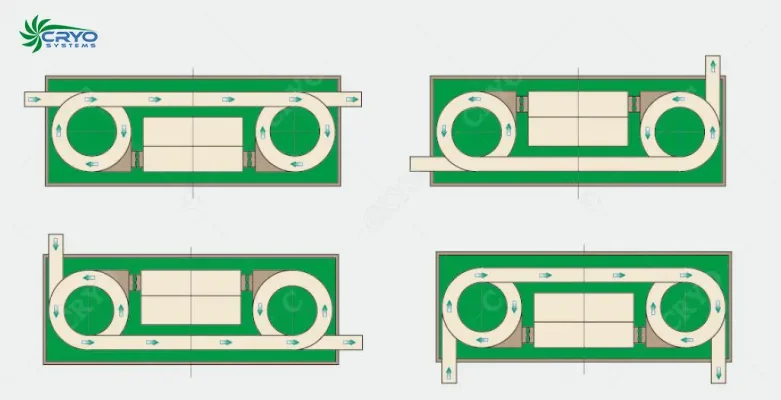

double spiral
Double spiral freezer
[basel_title tag=”h2″ title=”Features”]

1. Hygienic Interior Processing Space

* World patent anterior driving device avoiding oil pollution
* Evaporator with epoxy fin avoiding powder of alumina
* Water drain through the integral floor, No dust left inside
* Motor Bearings inside: No oil pollution
* Automatic cleaning system: High efficiency

2. Quicker Freezing Lower Moisture-lost

* Patented airflow system to achieve quicker freezing & lower moisture-lost
* Different fin space in the evaporator to enhance heat exchange efficiency
* Closed-circle Air-Duct System to ensure low motor power and save great running cost3. Saving Running Cost
* Lower installed motor power
* Patented airflow system reduces the retention time
* Save defrost water due to Epoxy fin

3. Saving Running Cost

* Lower installed motor power
* Patented airflow system reduces the retention time
* Save defrost water due to Epoxy fin

4. Credible and Stable Running

* Advanced technology to ensure stable running
* World-class parts controller to ensure credible running
* Strict system control on fabrication and assembly to ensure accuracy and reliability of the machine
* Factory test before delivery to ensure 100%pass
* Multi-alarm system for abnormal
* Perfect after-sales service

5. Easy Operation

* Easy operation and Stability in the Controlling system. Mitsubishi PLC( Chinese/English) in with the communication port, The
the controlling system, connect refrigeration system to realize automatic running
* PLC control automatically and accurately system running Controlling panel with LCD realize the easy and quick operation
* User can set auto running according to different product
* Belt speed will be controlled by the inverter when running. It’s suitable for various products
* Air blowing after Water cleaning to ensure belt clean
* Display the information of abnormal when a malfunctioning


[basel_title tag=”h2″ title=”Application of IQF spiral freezers”]

IQF spiral quick freezer solution, for some food plants, has limited space. Our small, medium and large volume IQF spiral systems operate in virtually every food processing sector including convenience foods, ready meals, frozen snacks, chicken, fish, and poultry products, the bakery sector, and fruit, vegetables, etc.

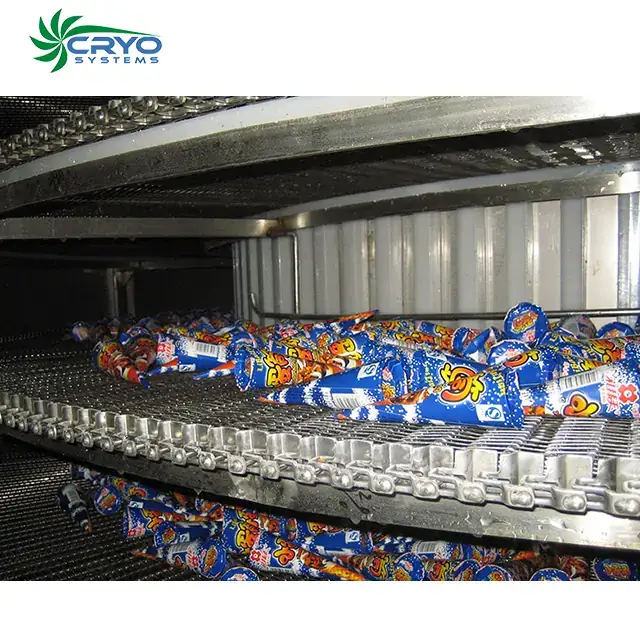

frozen food application

For this article, you will know: What’s the Difference Between IQF Freezing and Cold Storage Freezing?

We would like to design suitable IQF freezers(spiral freezers or tunnel freezers) for you, please feel free to let us know your demand information.
