Successful Chain Catering Cold Storage Project
Introduction Of The Cold Storage Project For The Chain Catering
The total area of this chain catering cold storage project reaches 1400 square meters, covering a large number of functional areas, including the corridor, processing area, refrigeration area, and quick-freezing area.
The processing area includes the pickling room, vegetable processing room, aquatic product processing room, and meat processing room. Each processing area undertakes specific and crucial processing tasks.
The refrigeration area provides a suitable refrigeration environment for different types of items. It includes vegetable cold storage, No. 1 cold storage, No. 2 cold storage, and finished product freezer.

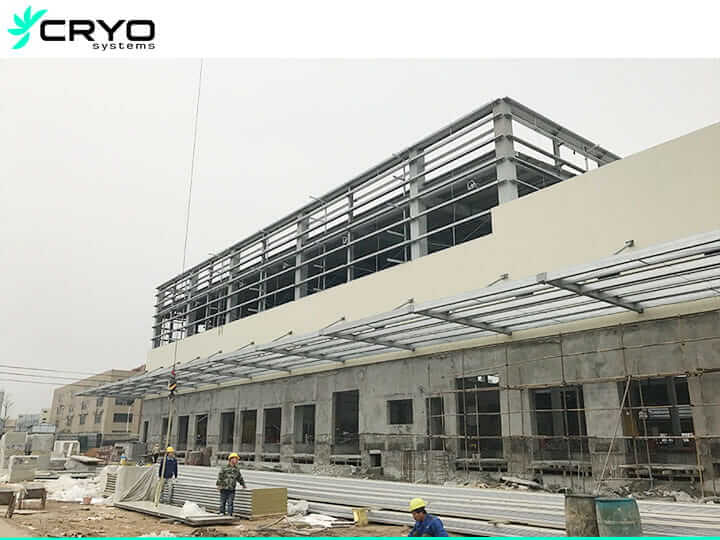

![cold storage project](http://cdn-64972201c1ac185fe004c550.closte.com/wp-content/uploads/2024/06/o4.jpg)

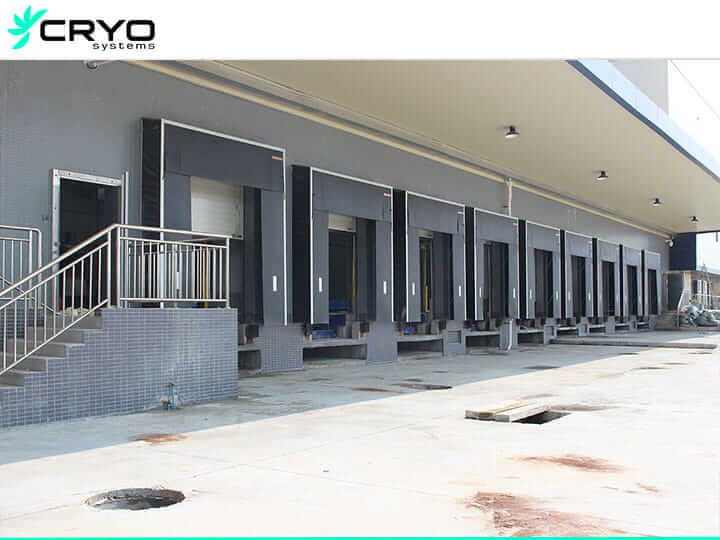

![Cold storage exterior](http://cdn-64972201c1ac185fe004c550.closte.com/wp-content/uploads/2024/06/o2.jpg)

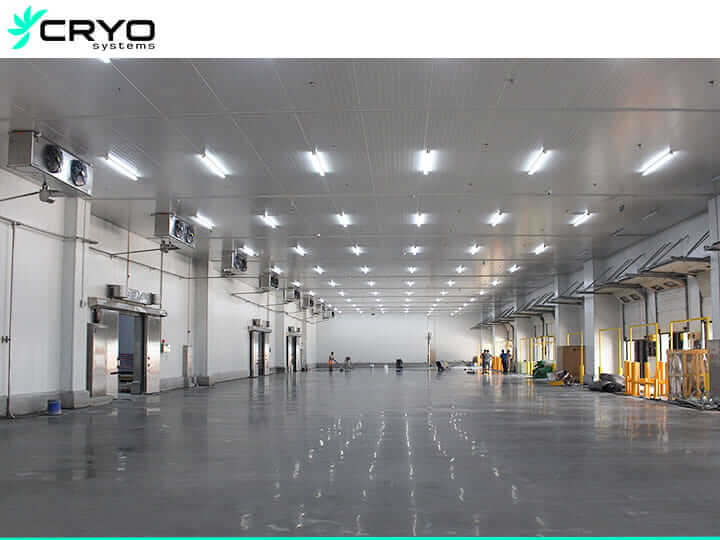

![cold room corridor](http://cdn-64972201c1ac185fe004c550.closte.com/wp-content/uploads/2024/06/n3.jpg)
Customer Requirements
In this cold storage construction project, at the request of the customer, all the main refrigeration equipment of the cold storage was selected from world-renowned brands.
Products We Provide
- The complete set of German Bitzer compressor units is known for its excellent performance and stability;
- The German Carel evaporator can achieve efficient heat exchange;
- The German Schroff air-cooled condenser has an excellent heat dissipation effect;
- Schneider Electric components ensure the reliable operation of the power system;
- Danfoss valve components accurately control the flow of various fluids;
- Aysen LED lighting provides clear and energy-efficient light;
- Lubao YGC cable ensures a safe and stable power transmission.
Solutions We Develop
In the specific implementation process of the chain catering cold storage project, areas such as the thawing room, the pickling room, the vegetable cold storage, the vegetable pre-treatment area, the vegetable processing area, the No. 1 cold storage, and the No. 2 cold storage that are in the temperature range of 2°C to 4°C, we carefully selected a powerful German Bitzer three-parallel 60P semi-hermetic piston compressor. To ensure the continuous and stable refrigeration effect, we also specially equipped two German Schroff air-cooled condensers to work together.
For the aquatic product and meat processing area warehouse with a temperature of 10°C, after careful consideration, we chose a German Bitzer two-parallel 20P semi-hermetic piston compressor. At the same time, we also carefully matched a German Schroff air-cooled condenser for it.
As for the remaining -22°C finished product freezer, our team determined to select a German Bitzer two-parallel 24P semi-hermetic piston compressor unit. Also, a German Schroff air-cooled condenser was configured for it to achieve the best refrigeration effect.

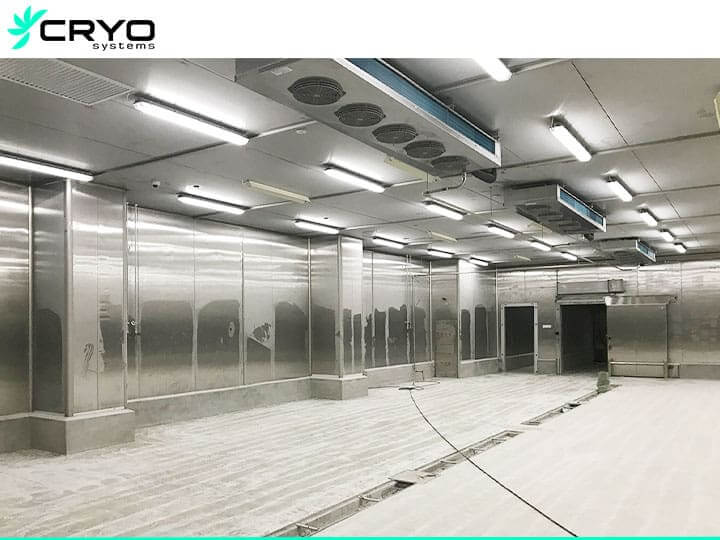

![processing room](http://cdn-64972201c1ac185fe004c550.closte.com/wp-content/uploads/2024/06/pr3.jpg)

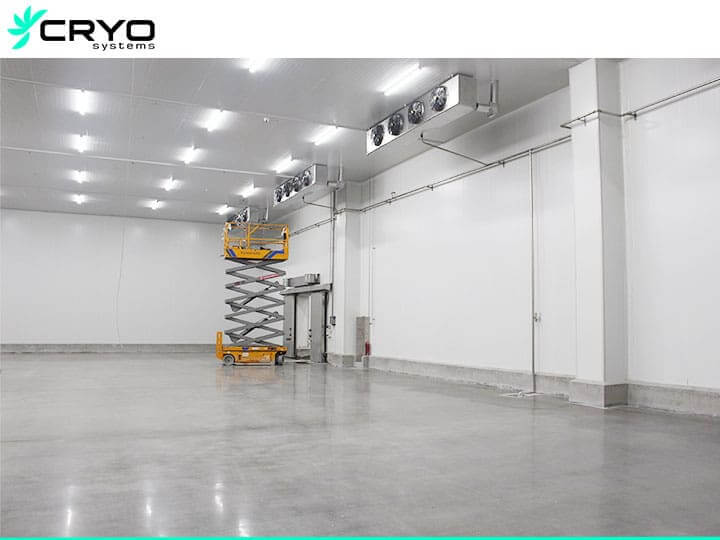

![chain catering cold storage](http://cdn-64972201c1ac185fe004c550.closte.com/wp-content/uploads/2024/06/e4-1.jpg)

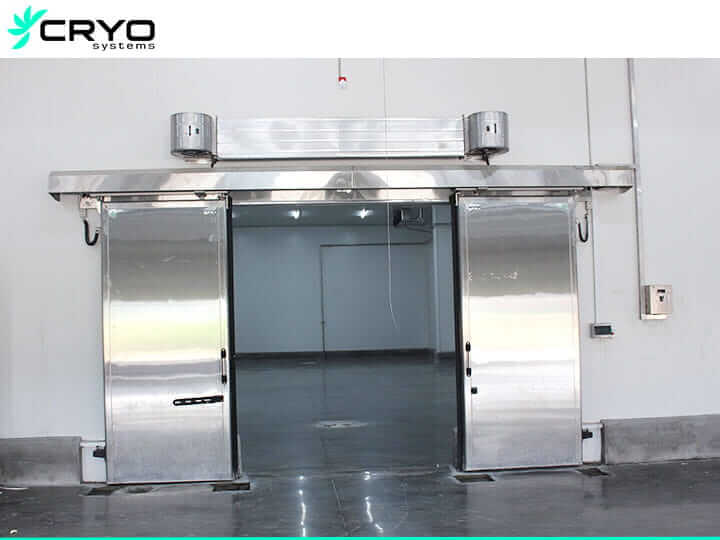

![heavy duty door](http://cdn-64972201c1ac185fe004c550.closte.com/wp-content/uploads/2024/06/m1.jpg)
The polyurethane double-sided color steel sandwich panels selected for this chain catering cold storage project are all PIR core materials (with difficult-to-burn B1 level), and the color steel plates are of Baosteel brand. The color steel plates of the Baosteel brand are famous for their excellent quality and outstanding performance, which can provide a reliable enclosure structure for cold storage.
The cold storage door uses the sus340 sliding door. The design of the sliding door is relatively space-saving, and it will not occupy too much surrounding space when opening and closing, which is convenient for the entry and exit of personnel and goods, and makes the operation in the cold storage more convenient and efficient.
This chain restaurant cold storage project was completely installed and debugged and put into operation in November 2017, and passed the one-time acceptance of the customer. At present, the cold storage is being used normally. The customer indicated that the one-stop cold storage solution formulated by our team is very professional. They are very satisfied with the construction and optimized design of the overall cold storage project.
