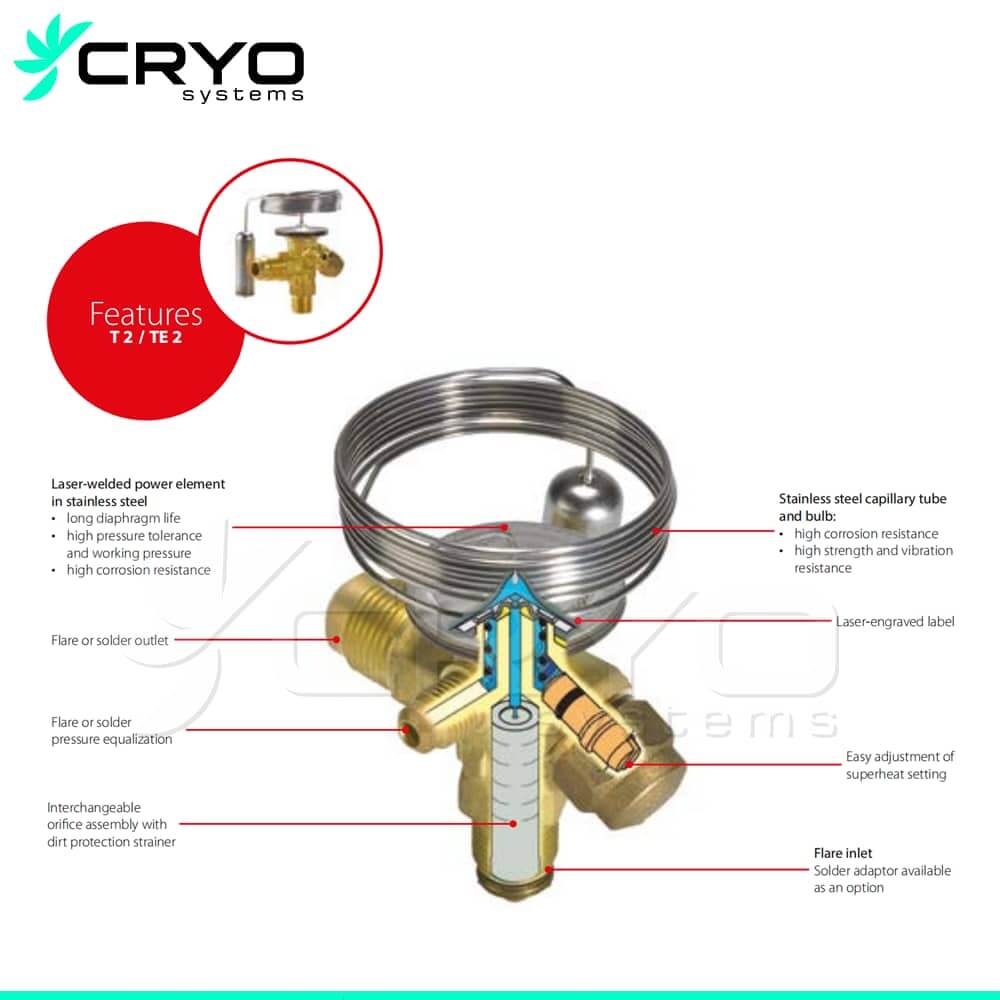

T 2 / TE 2 - Thermostatic Expansion Valves
T 2 / TE 2 thermostatic expansion valves are used for liquid injection into evaporators on both refrigeration and air conditioning systems using fluorinated refrigerants e.g. R407C / R22, R134a, R404A / R507, R407C, R407F and R407A.
T 2 / TE 2 valves are supplied as a parts programme, with separate thermostatic element/valve body and orifice assembly.Available as angleway valves with flare x flare or flare x solder connections, with internal and external equalisation
Applications:
- Traditional refrigeration
- Heat pump systems
- Air conditioning units
- Liquid coolers
- Transport refrigeration
- Large temperature range
- Equally applicable to freezing, refrigeration and air conditioning applications
- Interchangeable orifice assembly
- – easy stocking
- – easy capacity matching
- – better service
- Can be supplied with MOP(Max. Operating Pressure)
- Protects the compressor motoragainst excessive evaporating pressureduring normal operation
- Valves for special temperature ranges and refrigerants can be supplied
- Flare / solder adaptor can be supplied
Technical data and ordering

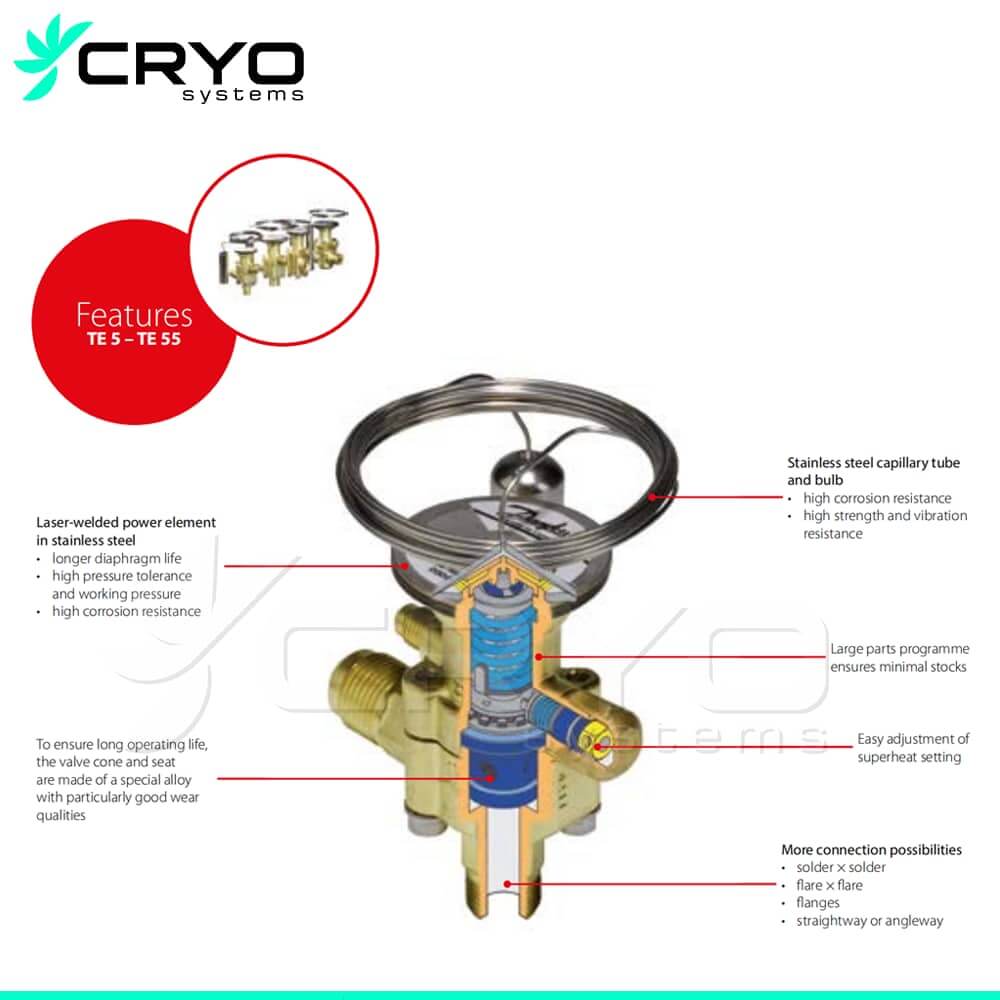

TE 5 – TE 55, Thermostatic expansion valves
TE 5 – TE 55 thermostatic expansion valves regulate the injection of refrigerant liquid into evaporators for medium sized plants. Injection is controlled by the refrigerant superheat. Therefore the valves are especially suitable for liquid injection in “dry“evaporators where the superheat at the evaporator outlet should always be kept constant. TE 5 – TE 55 valves are supplied as parts programme, built up of three main components – thermostatic element, orifice assembly, and valve body with connections, and have external pressure equalization.
Refrigerants: R22, R134a, R404A, R507, R407A, R407F and R407C
Applications:
- Traditional refrigeration
- Air conditioning units
- Water chillers
- Interchangeable orifice assembly
designed for:
– easy assembly and mounting
– optimised capacity matching
– balanced port (TE 55 only)
- Large temperature range: -60 – 10 °C / -75 – 50 °F
- Available with MOP(Max. Operating Pressure)
- Wide capacity range
- Refrigerants: R22, R134a, R404A, R507, R407A, R407F and R407C
- Maximum Working Pressure PS / MWP:28 bar / 400 psig
Technical data and ordering
