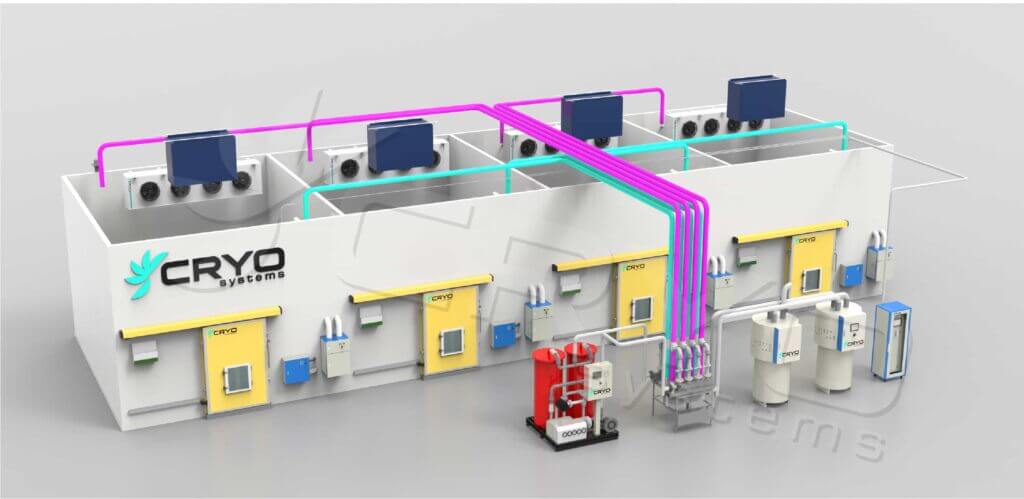

(CA)Controlled Atmosphere Storage Solutions
Keep Your Fruits & Vegetables Fresh 3-5 Times Longer
Product Features
1. Introduction
A controlled atmosphere storage adjusts oxygen, carbon dioxide, and humidity levels to slow down the natural ripening and aging of fruits and vegetables. By creating a low-oxygen, high-humidity environment, it can extend produce shelf life by 3–5 times while preserving color, texture, and nutrients. Automated sensors and control systems keep conditions stable and energy use low, making CA storage an efficient solution for high-value fresh goods.
2. Advantages
1. Extended Freshness
- Low-oxygen environment (1-5% O₂)
- High humidity control (90-98% RH)
- Slows produce respiration
- Extends shelf life 3-5x
2. Superior Airtightness
- CA doors prevent air leakage
- Premium materials and seals
- All panel connections, penetrations and door openings are gas-tight
- Effectively blocks microbial growth
3. Smart Remote Control
- Auto-monitors temperature/humidity
- Continuously measures O₂ & CO₂ levels
- Low energy consumption
4. Eco-Friendly & Efficient
- 100% physical gas regulation
- Freon-free operation
- High cost-efficiency
- Robust design for long-lasting reliability
3. Application
| Temperature (°C) | Relative Humidity | O2 | CO2 | Storage Life |
|---|---|---|---|---|
| -0.5~4 | 90%~95% | 1%~5% | 2%~4% | 8~12 months |
If you’re an apple grower or planning to store apples, check out our article: ”How Controlled Atmosphere Technology Solve the Pain Points of the Apple Industry？“.
| Temperature (°C) | Relative Humidity | O2 | CO2 | Storage Life |
|---|---|---|---|---|
| -0.5~0.5 | 90%~95% | 5%~10% | 0%~25% | 6~8 months |
| Temperature (°C) | Relative Humidity | O2 | CO2 | Storage Life |
|---|---|---|---|---|
| -1~-0.4 | 90%~95% | 3%~5% | 3%~6% | 3~8 months |
| Temperature (°C) | Relative Humidity | O2 | CO2 | Storage Life |
|---|---|---|---|---|
| -0.5~-0.2 | 90%~95% | 3%~5% | 10%~25% | 3~4 months |
| Temperature (°C) | Relative Humidity | O2 | CO2 | Storage Life |
|---|---|---|---|---|
| 0~1 | 98%~100% | 2% | 5% | 120 days |
| Temperature (°C) | Relative Humidity | O2 | CO2 | Storage Life |
|---|---|---|---|---|
| 3~5 | 90%~95% | ≥19% | ≤3% | 3~5 months |
| Temperature (°C) | Relative Humidity | O2 | CO2 | Storage Life | |
|---|---|---|---|---|---|
| Tomato (mature green) | 10~13 | 80%~85% | 3%~5% | <5% | 25~45 days |
| Tomato (ripe) | 3~5 | 90%~95% | 3%~5% | <5% | 25~45 days |
| Temperature (°C) | Relative Humidity | O2 | CO2 | Storage Life |
|---|---|---|---|---|
| -3~-2 | 70%~75% | 3%~5% | 12%~13% | 8~10 months |
| Temperature (°C) | Relative Humidity | O2 | CO2 | Storage Life |
|---|---|---|---|---|
| 9~12 | 90%~95% | 3%~5% | 1%~3% | 30~70 days |
The storage parameters provided above are for reference only. Optimal controlled atmosphere (CA) conditions may vary significantly depending on product variety, harvest maturity, growing region, orchard characteristics, and other factors. Even for the same produce category, CA settings suitable for Client A may not be appropriate for Client B. We strongly recommend consulting with our CA specialists to obtain customized storage solutions tailored to your specific products and circumstances.
| Species | Temperature (°C) | Relative Humidity | O2 | CO2 | Storage Life |
|---|---|---|---|---|---|
| Apple | -0.5~4 | 90%~95% | 1%~5% | 2%~4% | 8~12 months |
| Pear | -0.5~0.5 | 90%~95% | 5%~10% | 0%~25% | 6~8 months |
| Grape | -1~-0.4 | 90%~95% | 3%~5% | 3%~6% | 3~8 months |

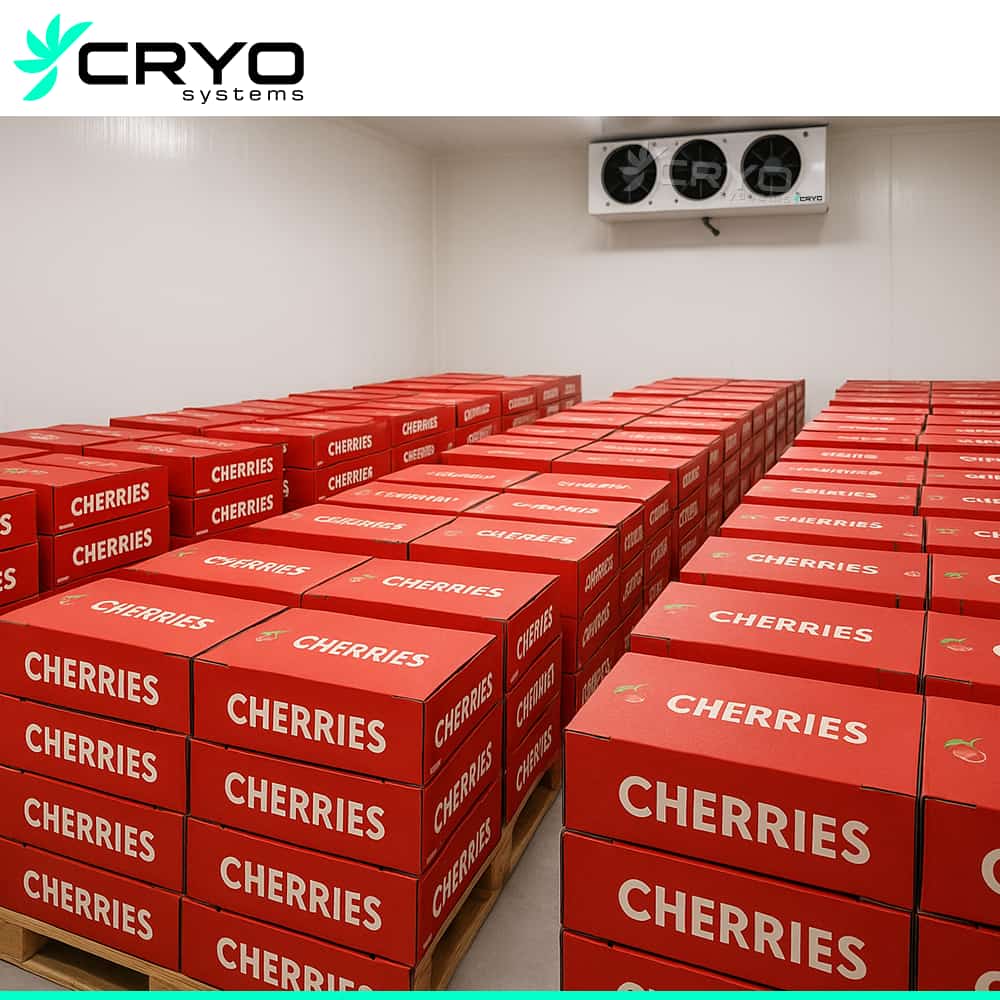

| Cherry | -0.5~-0.2 | 90%~95% | 3%~5% | 10%~25% | 3~4 months |
| Kiwi | 0~1 | 98%~100% | 2% | 5% | 120 days |
| Lemon | 12~15 | 80%~90% | 5%~8% | <5% | 2~6 months |
| Orange | 3~5 | 90%~95% | ≥19% | ≤3% | 3~5 months |
| Tomato (mature green) | 10~13 | 80%~85% | 3%~5% | <5% | 25~45 days |
| Tomato (ripe) | 3~5 | 90%~95% | 3%~5% | <5% | 25~45 days |
| Garlic | -3~-2 | 70%~75% | 3%~5% | 12%~13% | 8~10 months |
| Onion | -0.5~0.5 | 60%~70% | 2%~4% | 10%~15% | 6~8 months |
| Bell Pepper | 9~12 | 90%~95% | 3%~5% | 1%~3% | 30~70 days |
The storage parameters provided above are for reference only. Optimal controlled atmosphere (CA) conditions may vary significantly depending on product variety, harvest maturity, growing region, orchard characteristics, and other factors. Even for the same produce category, CA settings suitable for Client A may not be appropriate for Client B. We strongly recommend consulting with our CA specialists to obtain customized storage solutions tailored to your specific products and circumstances.

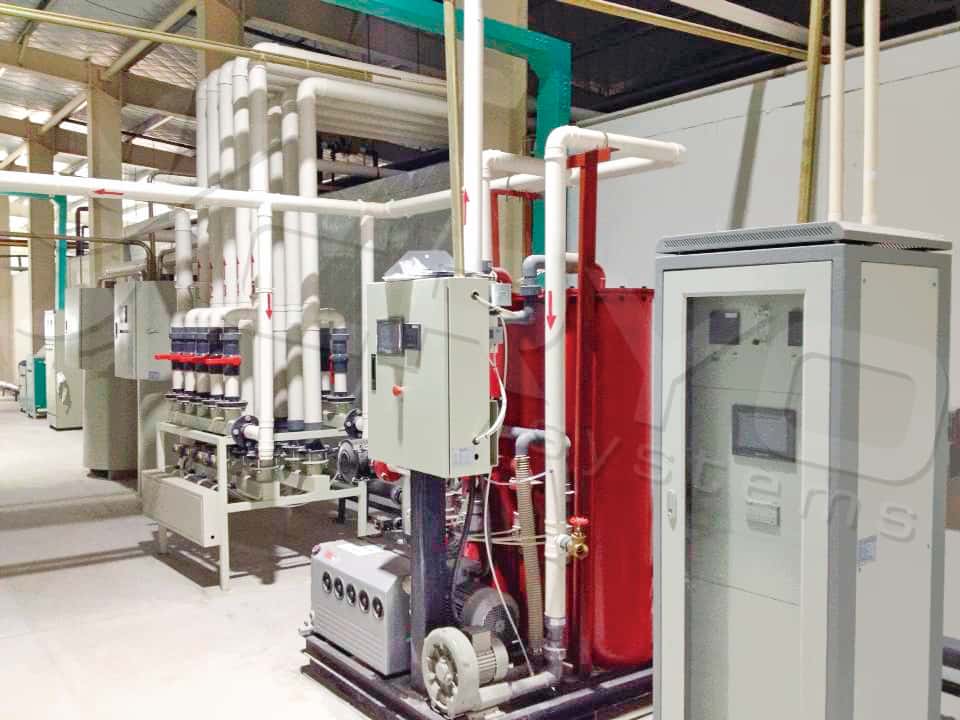

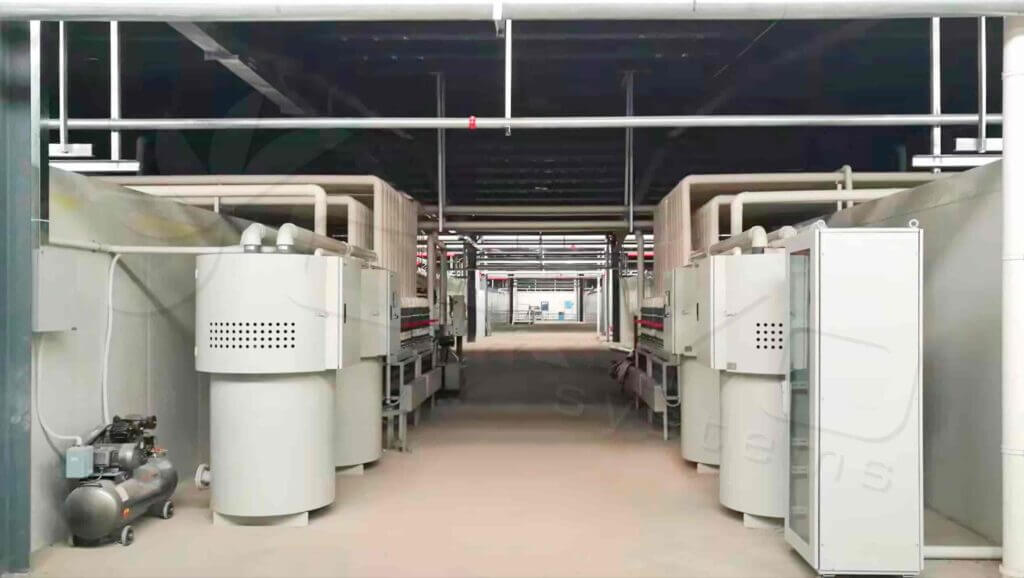

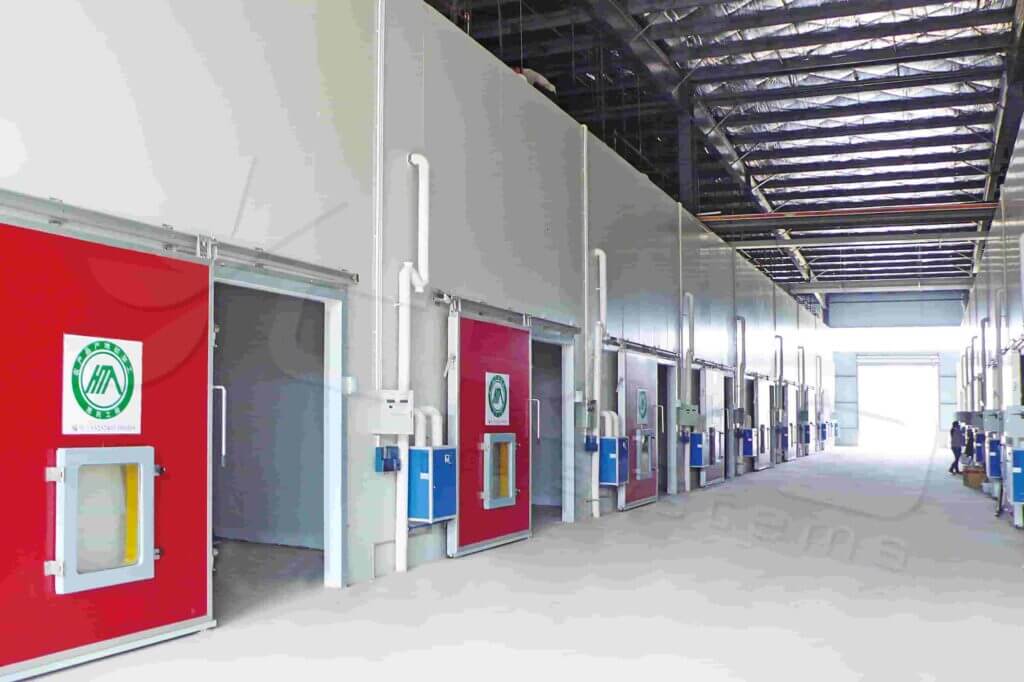

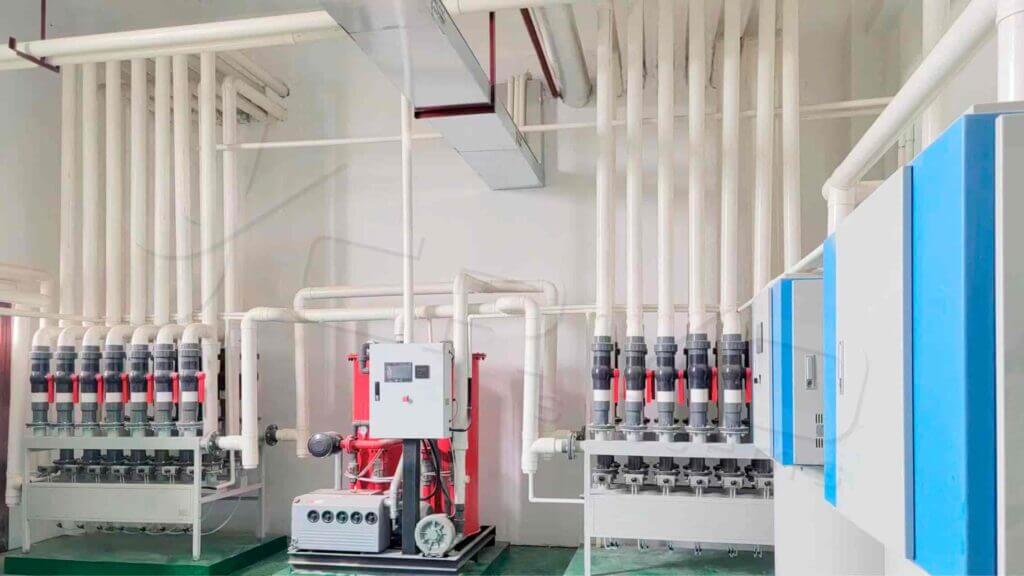

4. CA Storage Project Show
CRYO provides one-stop Controlled Atmosphere (CA) storage solutions designed to meet your unique requirements. Whether you’re a small business or a large operation, we deliver end-to-end CA projects, including cold rooms, refrigeration units, and smart storage systems.
Get Custom CA Solutions
Tailor your controlled atmosphere needs with our advanced systems. Contact Our Team! Get Your Free Consultation Now!
Our Solution for CA Storage

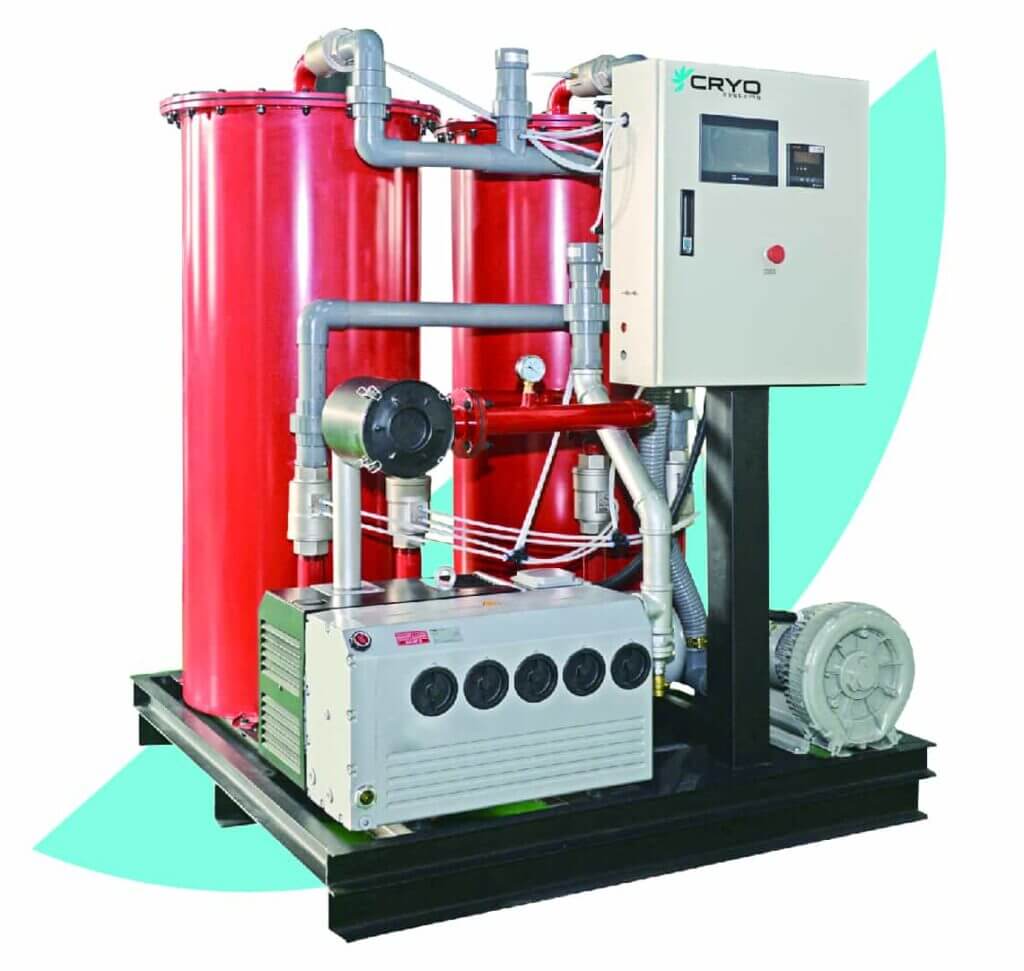

1. O2 Scrubber
- 40 % energy saving compared with nitrogen generators.
- Easy to use – one-touch, user-friendly screen.
- Parts imported from Europe and America for stable, reliable performance.
- Automatic frequency control reduces oxygen faster while consuming less energy.

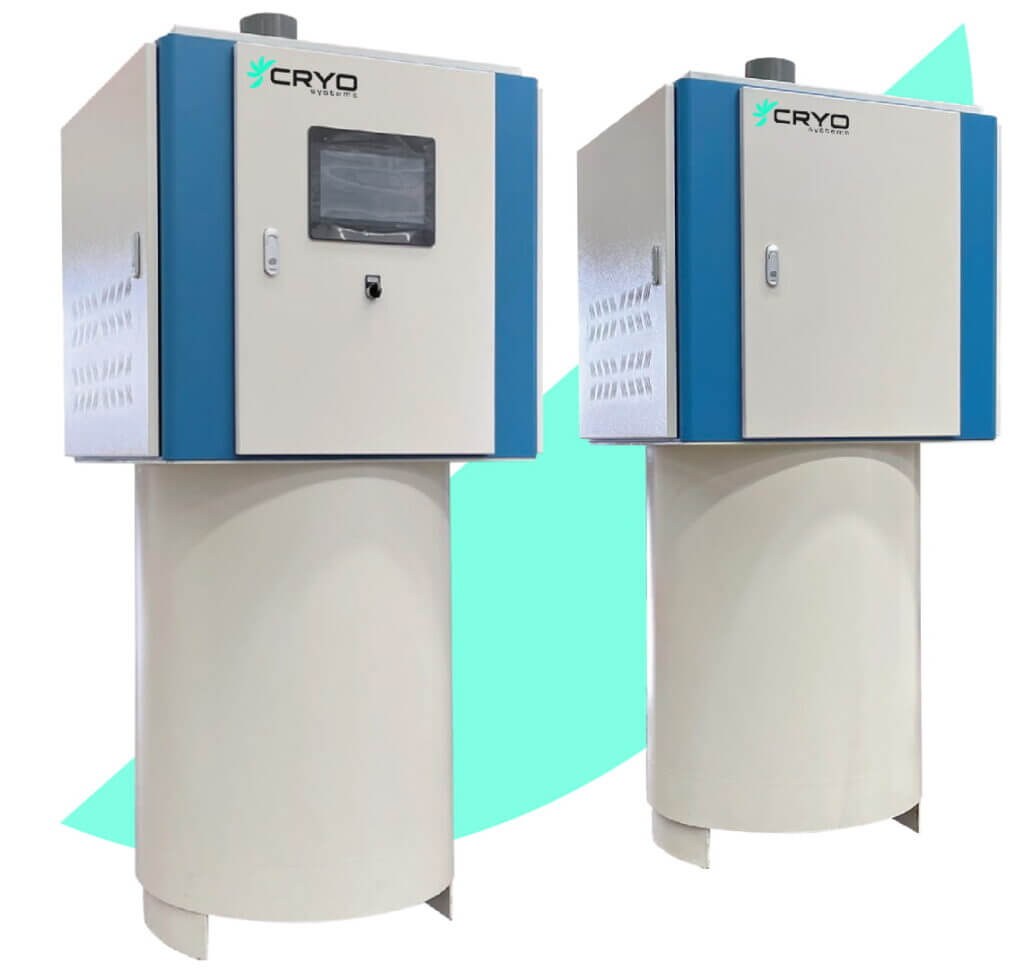

2. CO2 Scrubber
- Easy to use with user-friendly screen.
- Parts imported from Europe and America for stable, reliable performance.
- Uses high-efficiency CO2 absorbent for fast regeneration and long service life.
- CO2 scrubber can runs continuously and doesn’t bring O2 into the room.

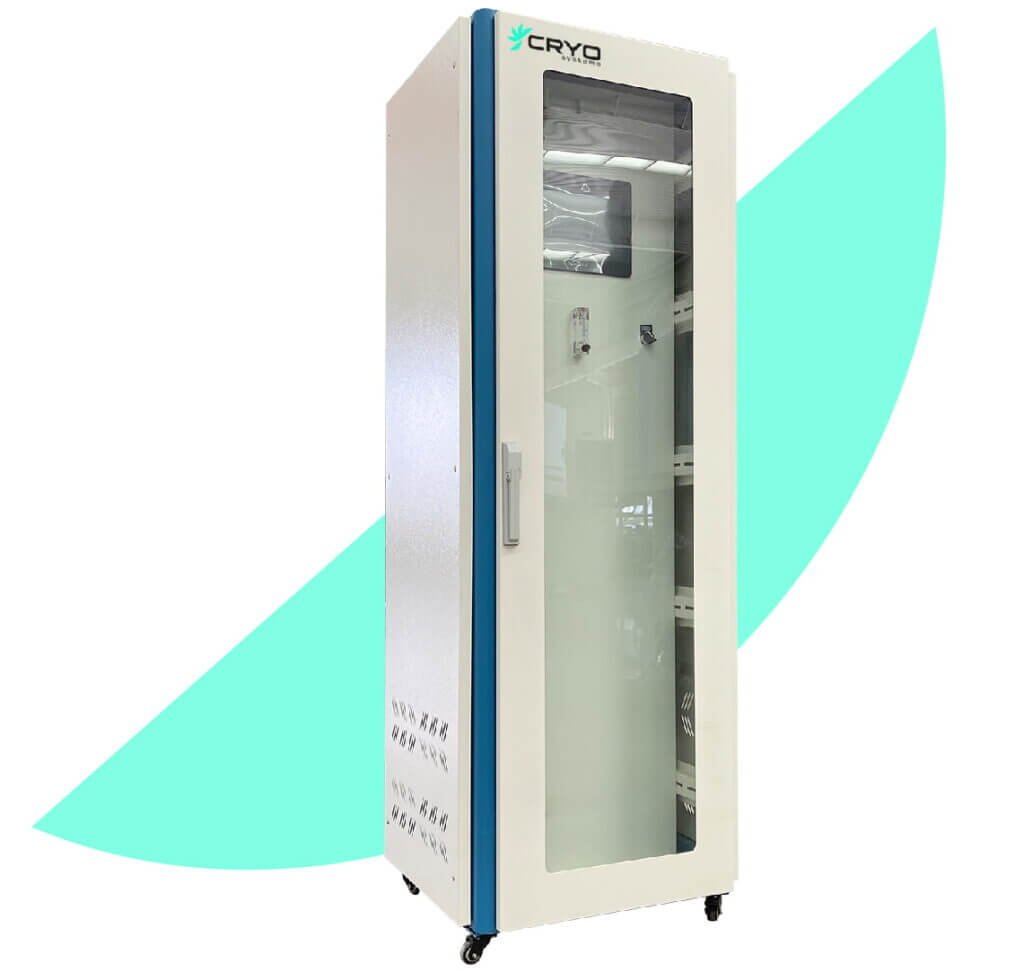

3. Gas Auto Measurement & Control System
- Continuously measures room O2 and CO2 levels and automatically runs the CO2 removal machine to achieve targets.
- Equipped with top-grade infrared CO2 and electrochemical O2 sensors for precise measurement.

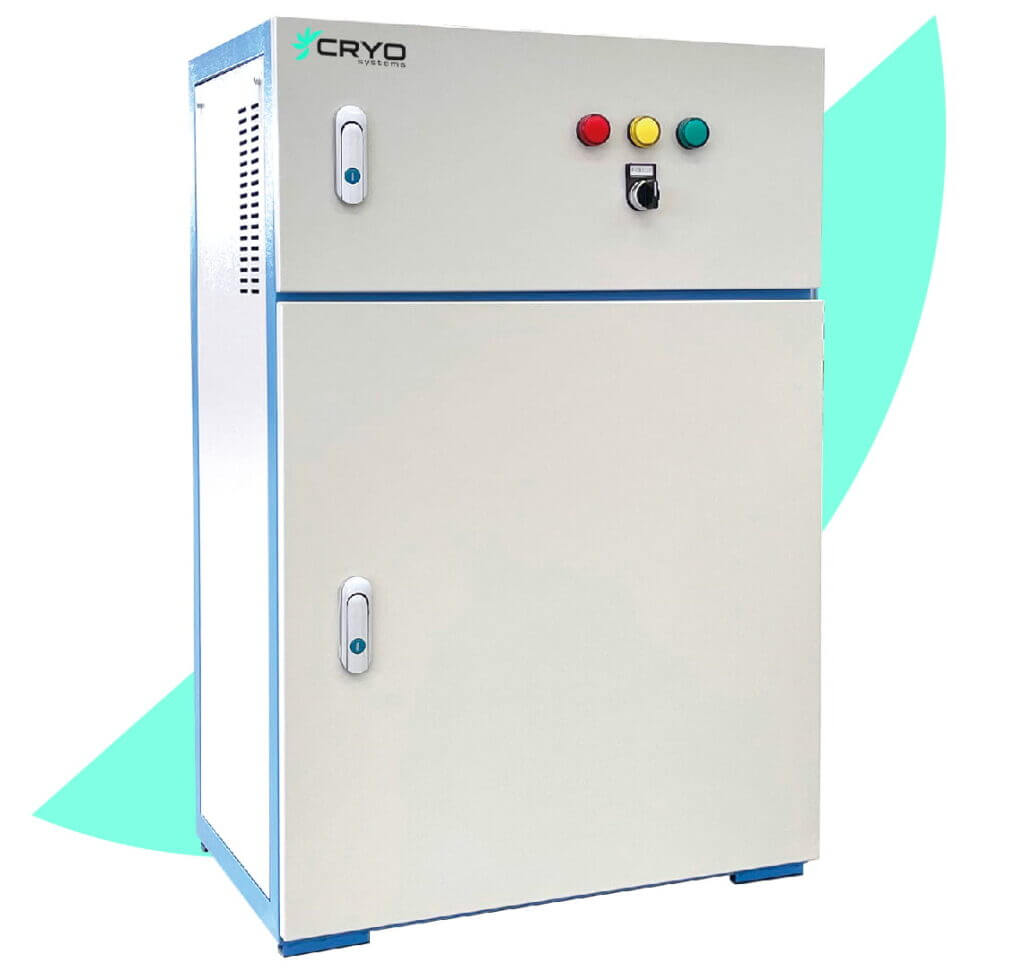

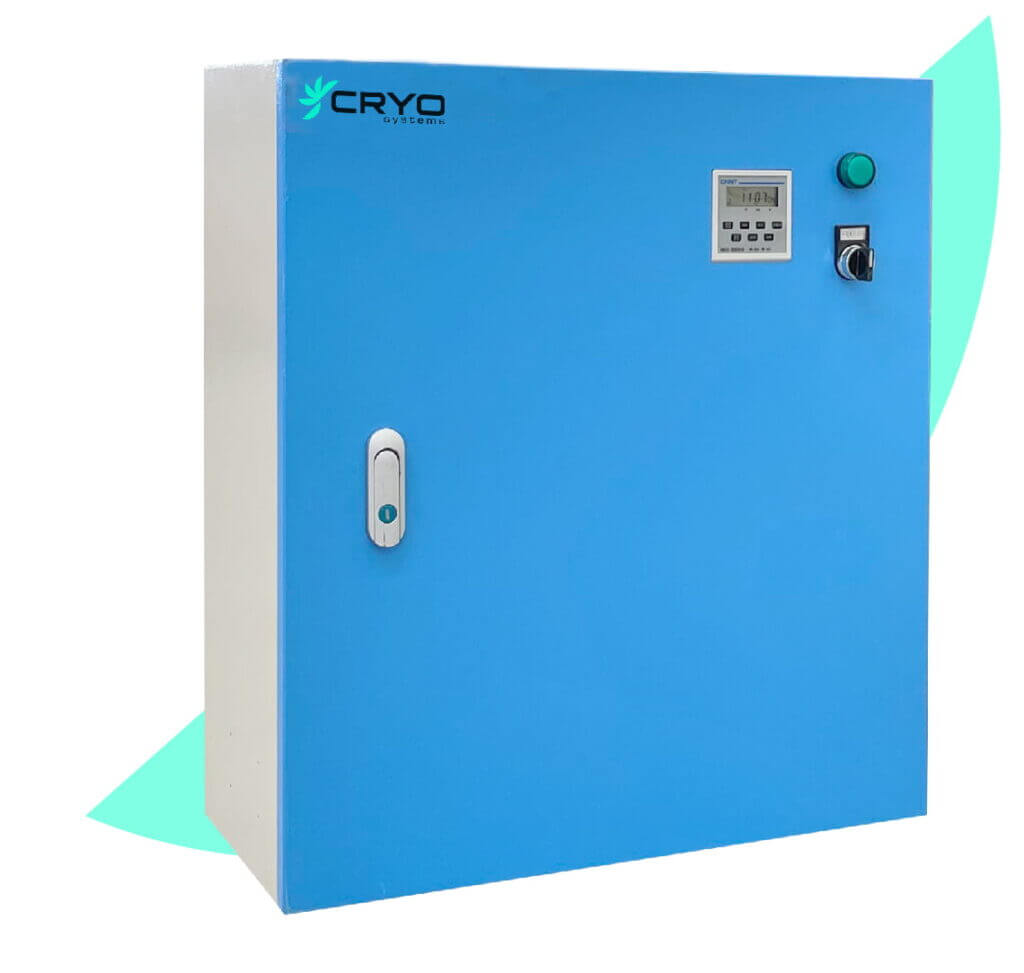

4. Humidifier & Sterilizer
Keeps humidity at the right level to stop fruits and vegetables from drying out.
Releases ozone to kill bacteria and fungi, lowering the risk of cross-contamination.

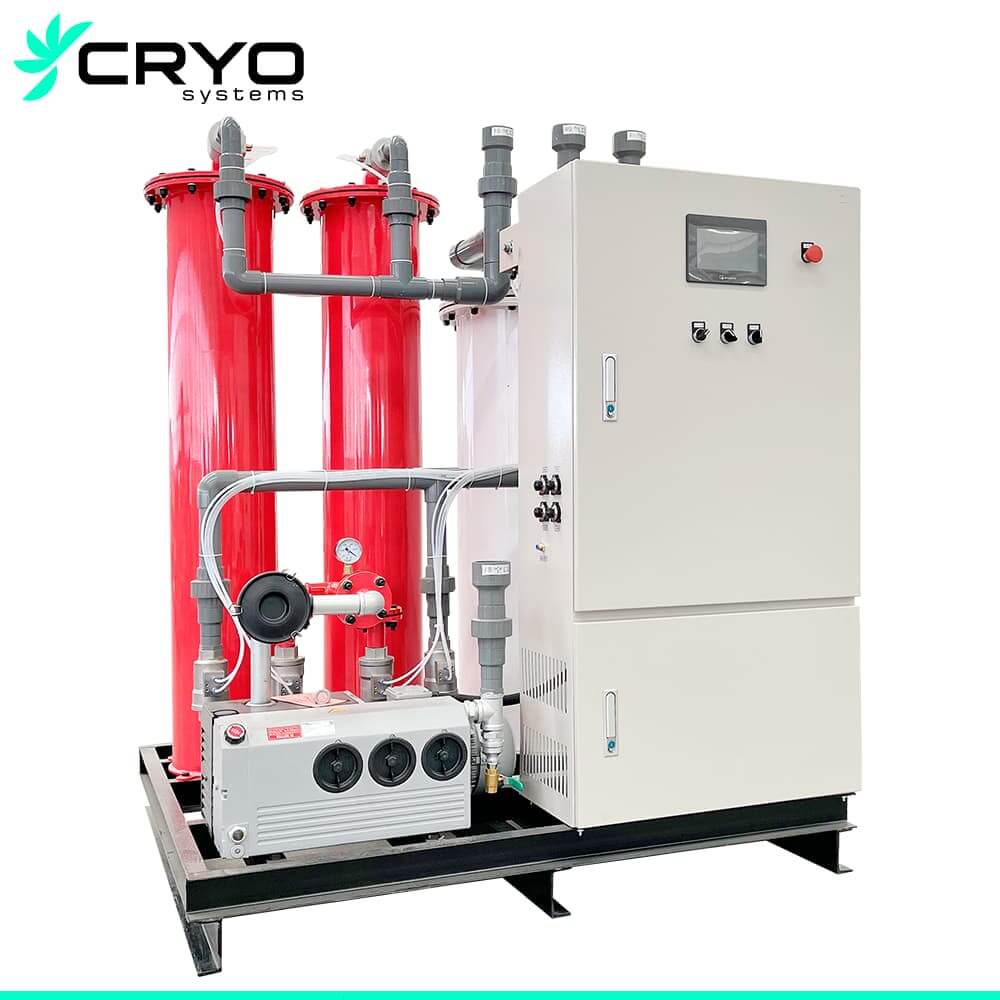

5. Atmosphere Conditioning All in One Machine
Advantages:
- Combines multiple functions into one device, saving 50% space compared to traditional separate equipment.
- Intelligent touch screen control, easy to operate with a simple interface.

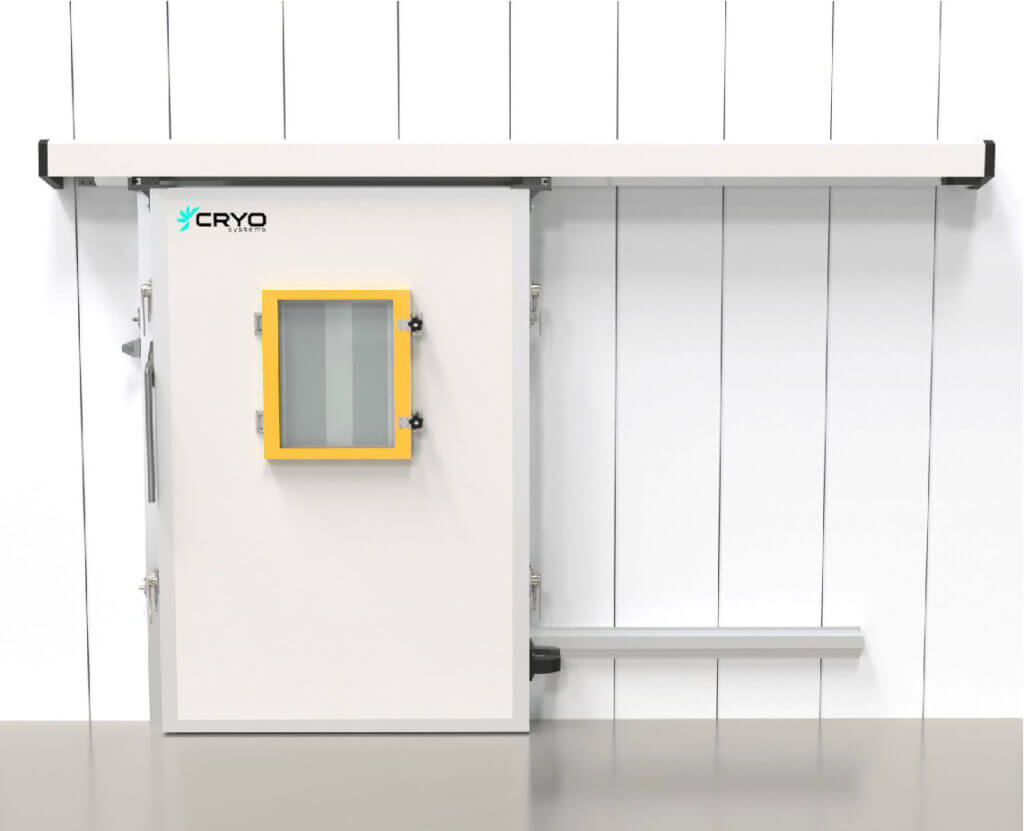

6. CA Door
- Good sealing: Prevents air leakage.
- Durable: Durable with rust-proof parts.
- Fast operation: Quickly opens and closes to maintain a stable environment.
- Safety features: Emergency release and viewing window.

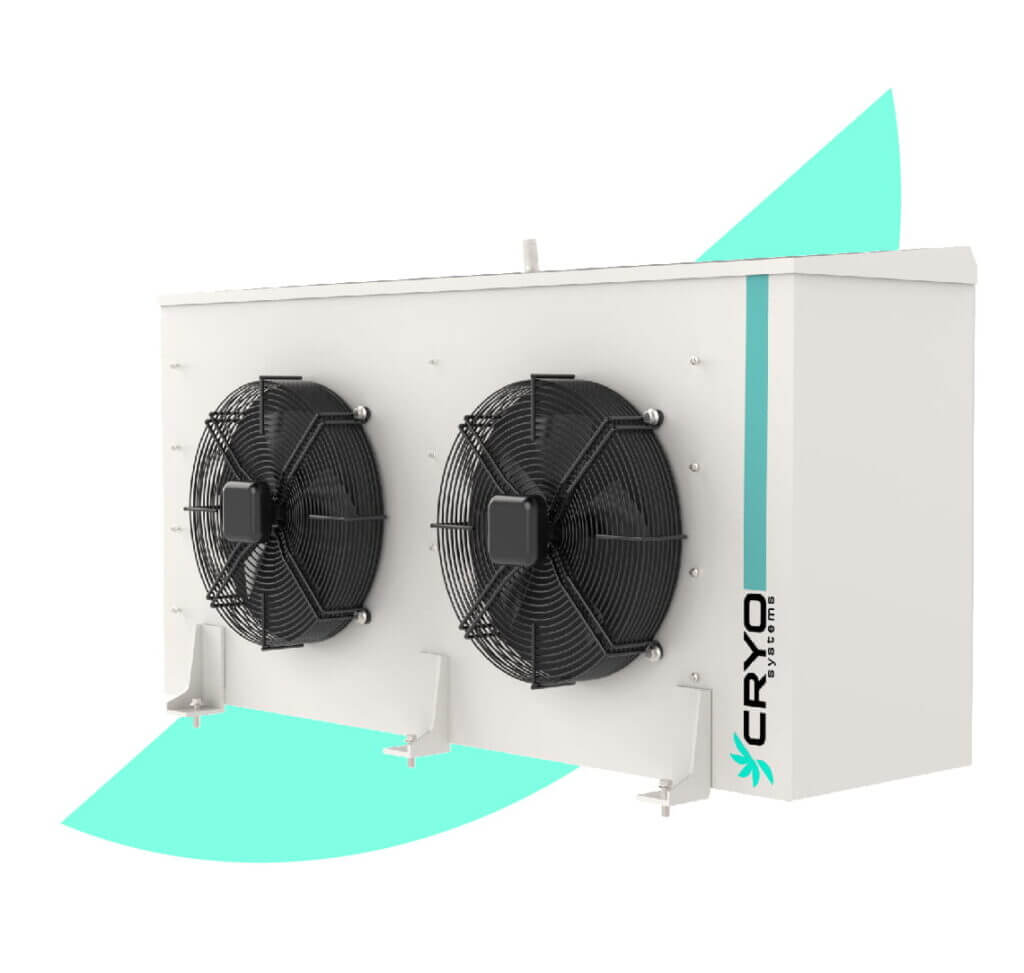

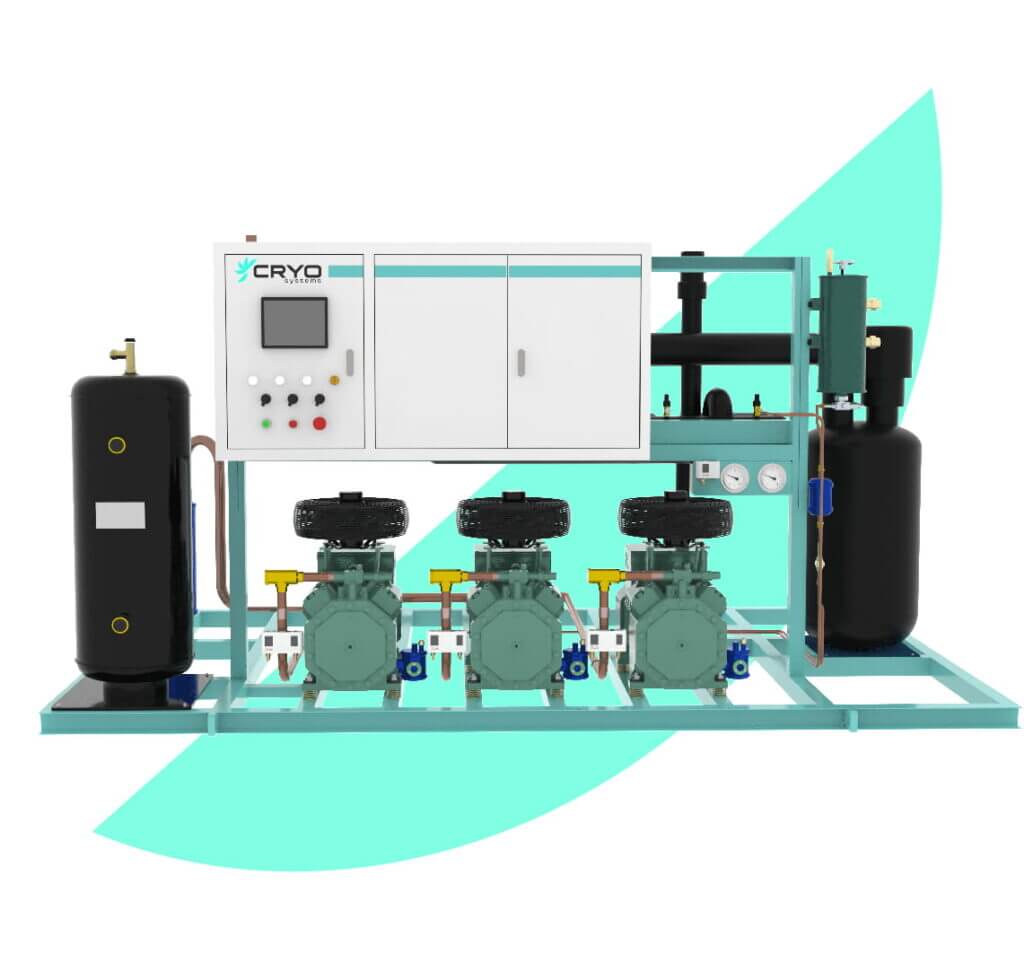

7. Refrigeration Units
Removes heat out of the system to keep the CA room at the target temperature.
Blowing cold air evenly around the room so every corner stays at the right temperature.
If you still don’t know whether your product should be stored in a cold room or a controlled atmosphere storage, click here to learn more.
Don’t hesitate! Choose our customized controlled atmosphere storage solution to protect your agricultural products and business development. Get it now!
