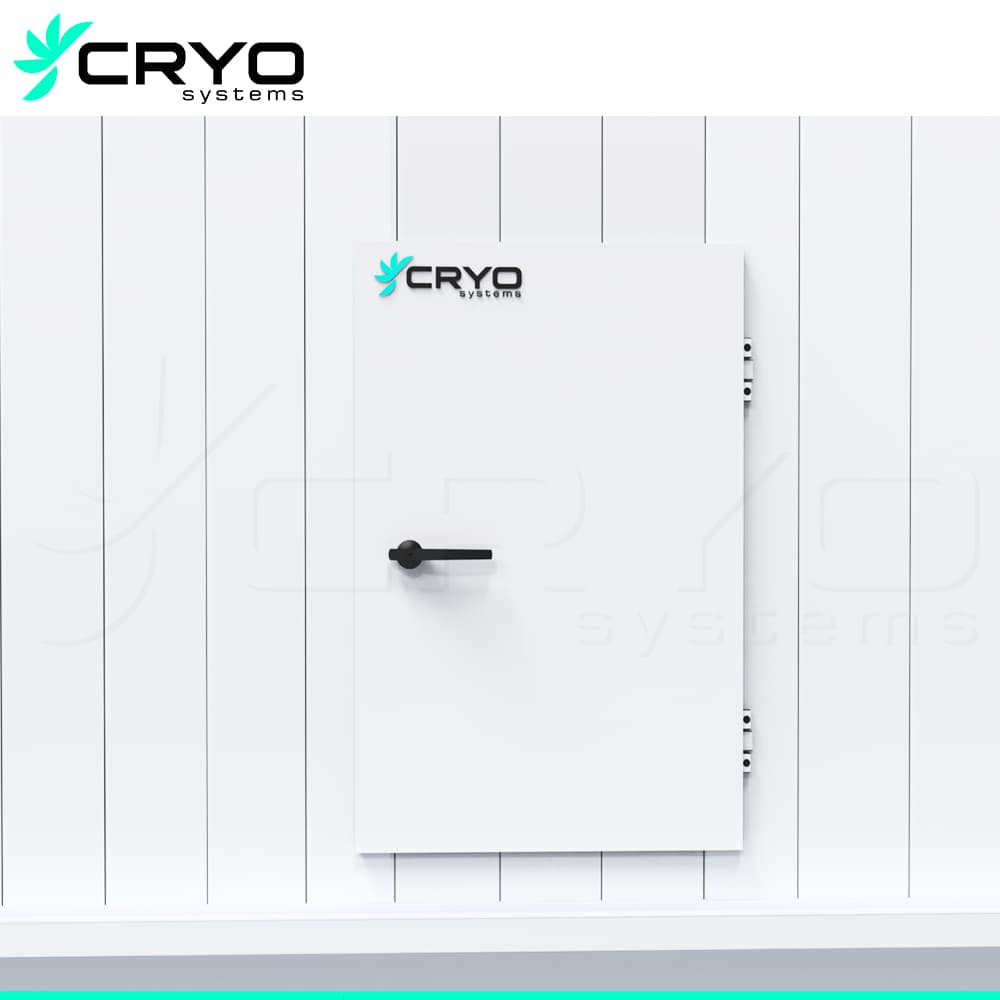

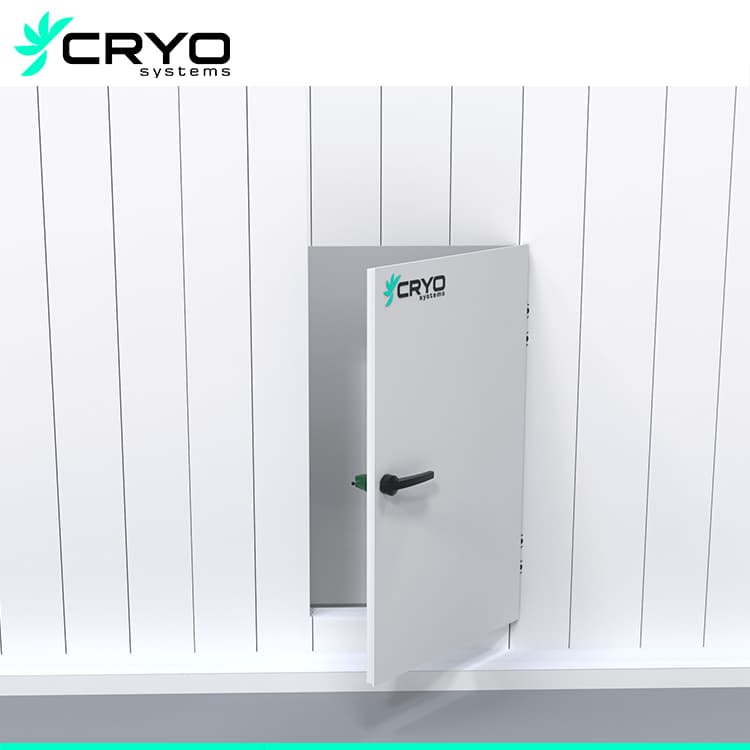

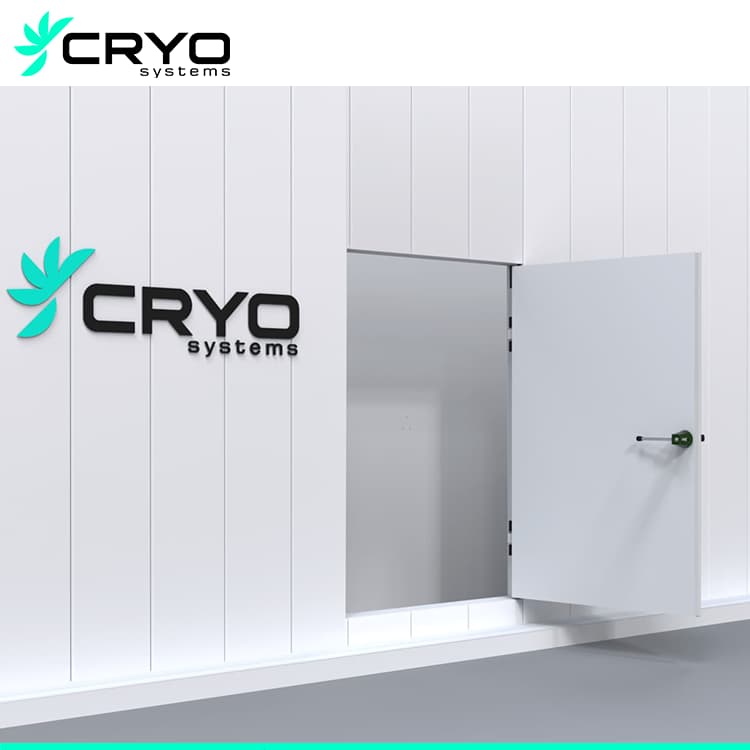

The sealing and heat insulation are the best, and the appearance is more beautiful than the external type. Door with frame, frame plate hook pin type, half of the door body is buried in the door frame, cam-lock cold room in the most common form of door. And it is available in single and double opening types.
Hinged door Features:
- Optimize space usage: Half of the door body is embedded in the door frame, which is particularly suitable for places with limited space.
- Good thermal insulation performance: The semi-buried design helps to reduce cold air leakage and maintain the stability of the temperature inside the cold storage.
- Strong durability: Usually made of high-quality materials, it can resist the influence of low temperature and humidity and increase the service life.
- Safety: Equipped with a safety locking system to prevent accidental opening
Application:
Suitable for small size buildings, Cold room, low-temperature freezer room, medium-temperature processing workshop, thermal insulation device, moderate door size, moderate door opening frequency.
Hinged door Details
√ Design: by Teledoor in Germany.
√ Lifetime: 2-3 times longer than others’.
√ Door hinges German STUV, EU standard.
√ Door’s hardware and door seal: best quality.
√ Safety device to avoid the accident.
1. Door diagram:
| Applicable temperature | -45°C~+50°C |
| cold room door material | 100% polyurethane foaming material |
| cold room door density | 42kg/m |
| Panel Thickness (mm): | 50, 75, 100, 125, 150, 180 |
| Steel plate optional | stainless steel, color steel plate, embossed aluminum plate. |
| Door opening mode | single open, double open |
| Door height | 800 – 1300mm; 1500 – 2700 mm |
| Door width | 1800 – 2200mm; 2100 – 3000 mm |
2. Hinged door Components:
(1) European lock.
(2) Anti-lock push rod.
(3) German STUV hinges.
(4) 6mm Baosteel color plate.
(5) Best door seal and hardware.
3. Door size Consideration:
(1) Whether you use the forklift.
(2) Product and forklift size.
(3) Max width= 1.2m
(More than this width will reduce the lifetime of hinges.)
We provide the one-stop solution cold room with high-quality refrigeration systems(also with the refrigeration accessories)
Any need please contact us!
