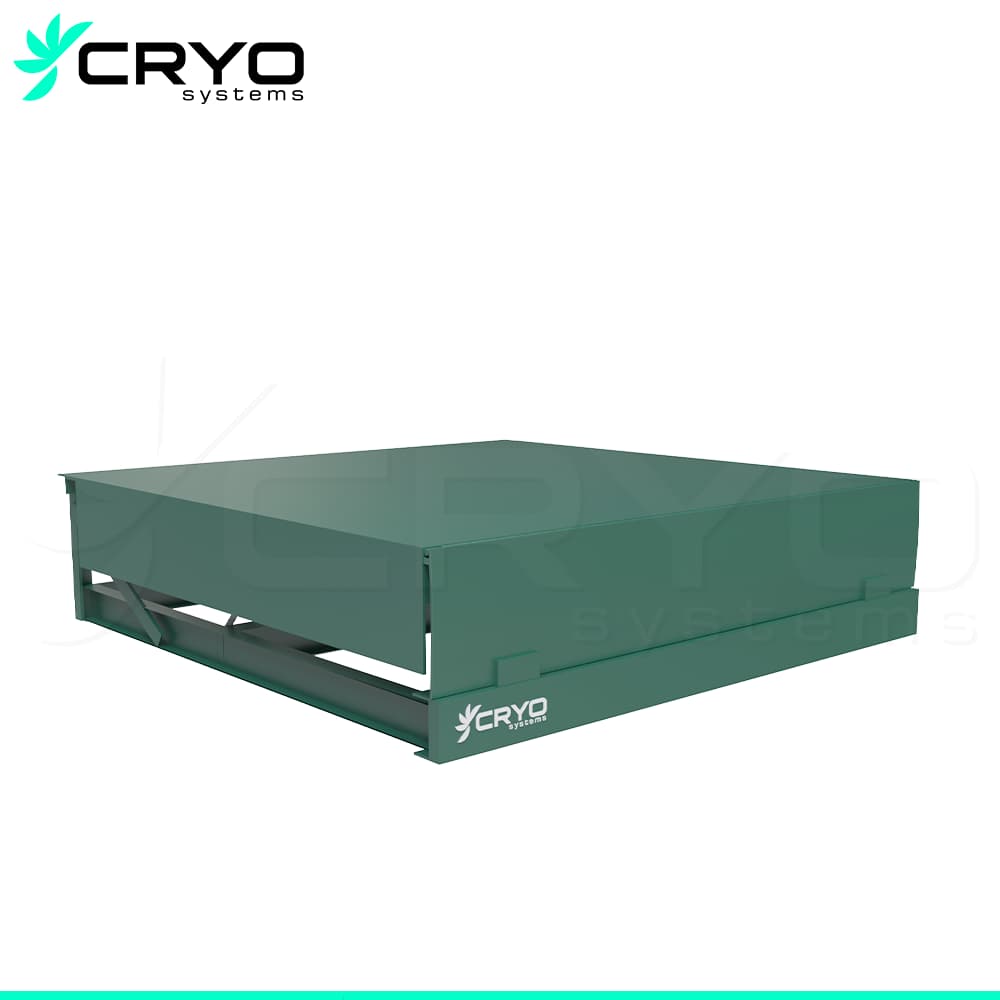

Dock Leveler

  • Streamline your operation, ensuring seamless transitions for efficient loading and unloading processes.
  • Say goodbye to uneven surfaces and hello to a perfectly leveled dock every time.
  • Our products are built to last, ensuring a long-lasting solution for your loading dock needs.
SKU: dock-leveler Category: Tag:

Dock levelers are standard equipment for transporting goods in and out of logistics warehouses. They can be adjusted up or down according to the different heights of the carriages. The auxiliary platform is placed on the carriage to facilitate forklifts to drive directly into the carriage to load and unload goods, speeding up shipments and improving the efficiency of warehouse entry and exit of materials and daily delivery.

Product Functions

  • Lifting goods: Allowing goods to move smoothly between different heights and reducing handling work.
  • Height adjustment: It can be adjusted to a height suitable for trucks or warehouse platforms to facilitate cargo handling.
  • Improve operating efficiency: Simplify the loading and unloading process, saving time and labor costs.
  • Loading function: According to the design, it can carry goods of different weight classes.
dock leveler 1

Dock Leveler Components

1、Platform base support
2、Upper Plate
3、main hydraulic lever*2
4、Hydraulic unit
5、Hydraulic oil pipe
6、Anti-cut board
7、Swinging Lip hydraulic rod
8、Swinging Lip
9、Repair struts
1、Platform base support
2、Upper Plate
3、main hydraulic lever*2
4、Hydraulic unit
5、Hydraulic oil pipe
6、Anti-cut board
7、Swinging Lip hydraulic rod
8、Swinging Lip
9、Repair struts

Product Specifications

Upper Plate
6mm thickness, anti-skate steel plate
Platform support steel
10#I Beam
Swinging Lip
Single 14 mm thickness, anti-skate steel plate
Anti-cut board
3mm galvanized steel plate
Hydraulic unit
Fully enclosed hydraulic system imported from Germany, 380V, 0.75kw
Hydraulic cylinder
φ30 plunger cylinder, ultimate working pressure 21MP, inverted dust-proof and debris-proof design
Hydraulic oil pipe
High pressure steel wire braided hose, ultimate working pressure 70MP
Loading Capacity
Dynamic Loading Capacity≤10T,Static Loading Capacity≤17T
Operating Temperature
+60℃ ~ -40℃
Service Life
≥100000times
Safe design
Hydraulic explosion-proof valve, vehicle detachment, oil pipe burst lock, built-in U-fork maintenance support rod, load-bearing limit 3T
Working Range
+300mm,-300mm
Paint
Special electrostatic powder spraying for automobiles, one layer of primer and two layers of topcoat, baked at 300℃
dock leveler draft
dock leveler 1-2
installed loading dock leveler

Our Advantages

Use Reinforced I-beam

I-beams are used at the bottom of the table. The uniform layout allows the forklift’s tires to press evenly on the I-beams at any position on the platform.
The main frame of the platform is a fully enclosed design, which is strong and not easily deformed. It will not deform during transportation, installation and use.

Dual Hydraulic Pump

The dual-cylinder hydraulic design has an extra-long hydraulic cylinder on the left and right, making it more stable and balanced during operation. Especially after an emergency, when there are forklifts and goods on the platform, it will not cause rollover due to left-right imbalance. The inverted design of the hydraulic cylinder can effectively avoid failure of the emergency hydraulic valve caused by damage by small debris.

Lip Details

Patented unique “duckbill” shaped thickened overlapping plate (the front end of the connecting plate has a 5-7° arc transition),
which can effectively avoid bumps and resting on the ground during loading and unloading.

About the dock leveler, we can design and offer you professional 3D and CAD drawings according to installation conditions. It’s very easy to install dock leveler when the pit is ready well. It also makes your logistics work more convenient.

We have many kinds of cold room doors, for more details don’t hesitate to get in touch with us!
