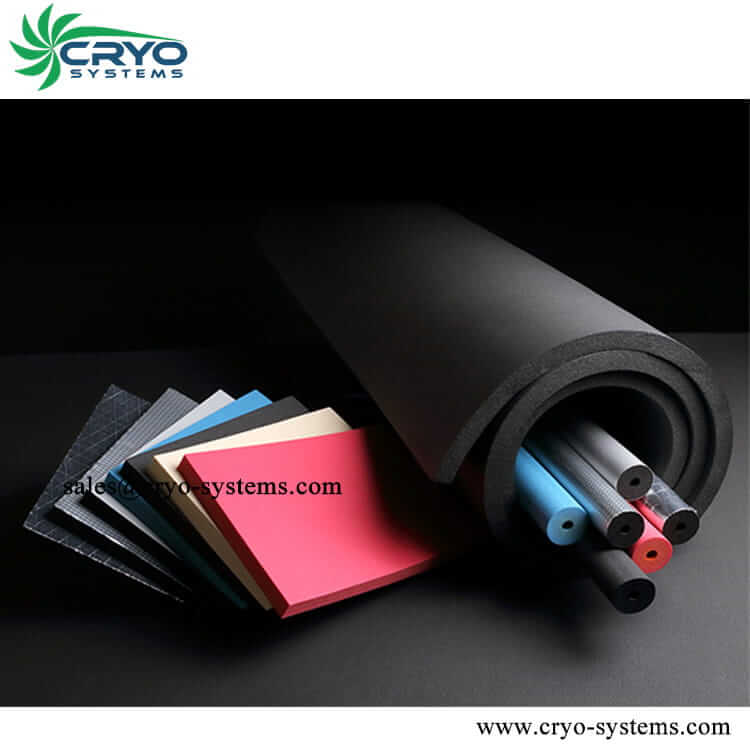

Insulation material

Category:

Roll Sheet Insulation

WS class0 and class1 NBR Sheet

Description:

It is mainly made of NBR/PVC as the main raw material, with additives such as flame retardant, foaming agent, curing agent, accelerator and stabilizer, reinforcing agent, etc., through capping, mixing, extruding, curing, foaming, cooling and cutting. It has small independent closed pore structure, good thermal insulation performance, good compression resilience, strong resistance to water vapour penetration, good fireproof performance, low smoke and non-toxic, safe and reliable, and long service life.

Specification:

Performance itemsTechnical parameter – WS class0Technical parameter – WS class2
Apparent Density Kg/m³40-8040-80
Thermal conductivity W/(m k)≤0.030 at -20°C;

≤0.032 at 0°C;

≤0.037 at 40°C

≤0.030 at -20°C;

≤0.032 at 0°C;

≤0.037 at 40°C

Moisture permeability coefficient g/(m·s·Pa)≤1.31×10^-11≤1.96×10^-11
moisture resistance factor≥15000≥10000
Vacuum water absorption %≤6≤8
Combustion performanceGrade B1, oxygen index ≥ 39%, additional grades: smoke production s2, combustion droplets d0, smoke toxicity t1 grade.Class B1 (Class B-s2,d0,t1)
combustion smoke toxicityZA3 security levelZA3 security level
Dimensional Stability %(105℃±3℃, 7d) ≤10(105℃±3℃, 7d) ≤10
Compression rebound rate %(compression rate 50%, 72h) ≥70(compression rate 50%, 72h) ≥70
Anti-aging 150hSlightly wrinkled, no cracks, no pinholes, no deformationSlightly wrinkled, no cracks, no pinholes, no deformation
Applicable temperature range -50~110-50~110

Application

It is widely used for thermal insulation and cold protection of various pipes and equipment in the high-end market of HVAC system to fully ensure the energy-saving effect of reducing cold and heat loss. It is widely used in various public places, industrial plants, clean rooms and medical and educational institutions.

Insulated Pipe – Colourfull NBR

Colourfull NBR Tubes

Description:

Mainly NBR/PVC as the main raw material. Tubular structure, customisable rubber and plastic colours according to customer requirements. A special process is used to mix the pigments into the rubber and plastic, which can meet the customer’s requirements for aesthetics and easy differentiation (e.g. separation of the outlet and return water).

Specification:

Performance itemsTechnical parameter
Apparent Density Kg/m³40-80
Thermal conductivity W/(m k)≤0.030 at -20°C; ≤0.032 at 0°C; ≤0.037 at 40°C
Moisture permeability coefficient g/(m·s·Pa)≤1.96×10∧-11
moisture resistance factor≥10000
Vacuum water absorption %≤8
Combustion performanceClass B1 (Class B-s2,d0,t1)
Outdoor useIt is recommended to use the outer insulation material
Inner diameter6mm – 48mm
Length1.8m, 2m
Thickness9mm – 20mm

Application

It is suitable for the main engine of commercial air conditioner and the room with many kinds of pipes.
