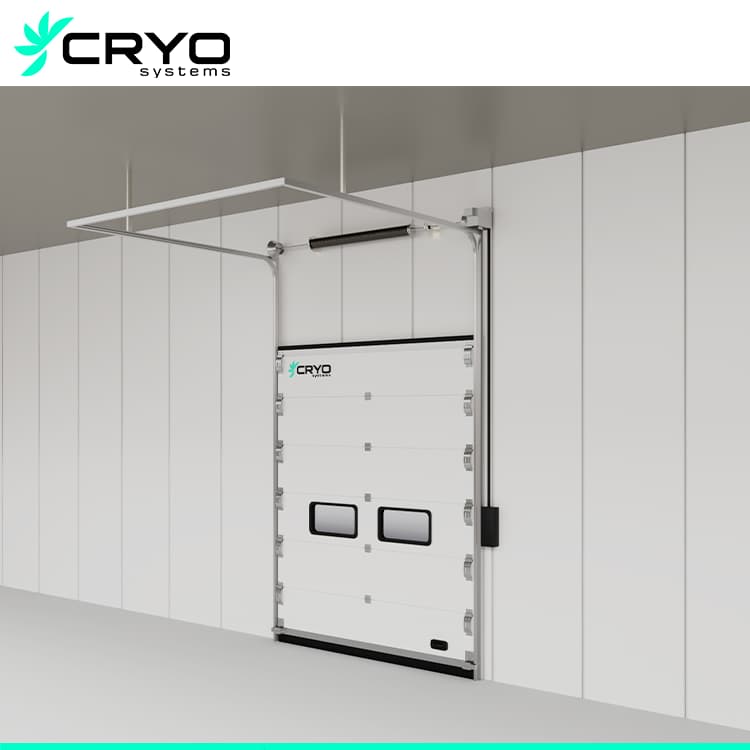

Sectional Door

Strong, heat preservation and space-saving features.
Widely used in industrial buildings.
Just press the button to enjoy the convenient door control experience.
The design is compact and does not take up extra space when raised.

1. Features of Sectional Door:

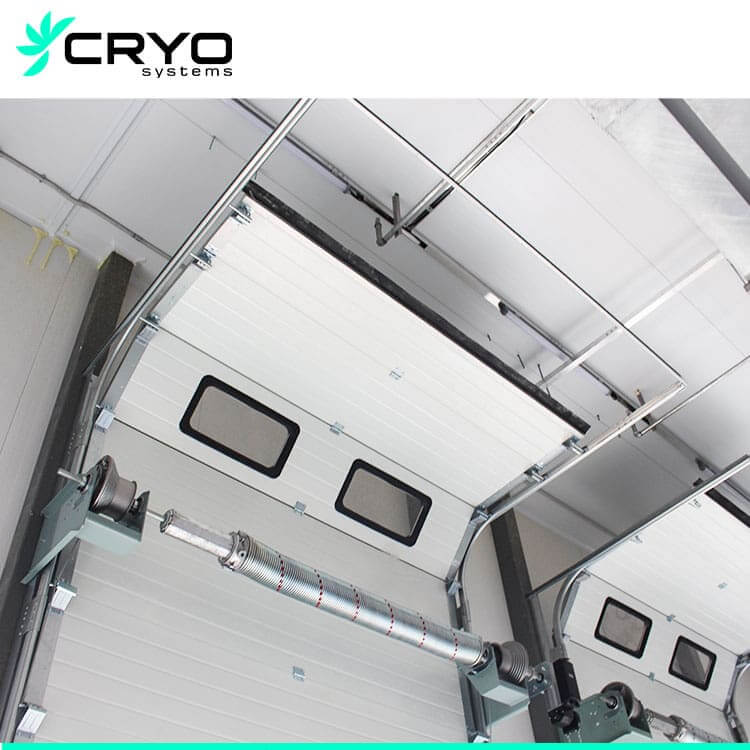

The insulated sectional door is a kind of door with a dynamic balance system and the rollers on both sides of the door leaf move up and down along the guide rail as a whole. It has the characteristics of sturdiness, heat preservation, and space-saving.

Excellent insulation performance: The door body is usually made of heavy insulation materials, such as polyurethane foam, which effectively insulates the outside temperature.
Space saving: The door body operates in a vertical direction and does not take up additional space, which is very suitable for cold storage with limited space.
Durable and easy to maintain: The use of high-quality materials and components ensures the durability of the door while simplifying maintenance procedures.
Highly sealed: Equipped with an efficient sealing system to reduce cold air loss and save energy.

2. Application:

It is widely used in industrial buildings. It is an ideal choice for buildings such as industrial plants, logistics, and warehousing.

Details

1. Basic technical parameters

Applicable temperature	0°C~+50°C
Cold room door material	100% polyurethane foaming material
Door thickness	42mm
Steel plate optional	0.5mm embossed steel plate, Baosteel
Door height	500mm
Wind resistance	450N/M2
Minimum size (mm)	2000×1500
Maximum size (mm)	10000×6000

2. Components:

1)Door panel: Filled with 48kg/m3 fluorine-free polyurethane warm foam material in the middle of the door panel.

2)Access door: The choice of access door can greatly reduce the use frequency of the door and extend the service life of the door. The size of the small door is 850mX850mm (width x height). The size of the small door is fixed and the hinge is always on the right side.

3)Daylighting window: The daylighting window is a rectangular window, the size is 650H1×320M.

4)Control mode: The standard control mode is three control buttons on the control box to control the three actions of opening, stopping, and closing the door respectively. Customer needs can also be remote control, geomagnetic control, photoelectric control, and radar control.

5)Power system, Use German Brand, or choose Domestic brands.

6)Balance system, Adopt external torsion spring balance system, the spring must be precisely balanced.

7)Track system,Integral composite track (consisting of wall track and wheel track), made of high-quality galvanized steel plate produced by Baosteel, thickness 2.0mm. Galvanizing parameter 200.

8)Safety system, Ensure safe use.
