Seafood Processing Plant

processing room

1# Location:

Fiji, Sri Lanka, Vietnam, Peru, Chile, etc

2# Design principle

  • At least 20-years service life for PIR panels
  • At least 15% power saving design
  • Easy operate and easy to fix
  • Less space for machines room

3# Seafood Processing Plant Project basic info

  • 16 tons blast freezer
  • 20 tons ice machines
  • 30 tons processing room
  • 300 tons frozen cold storage

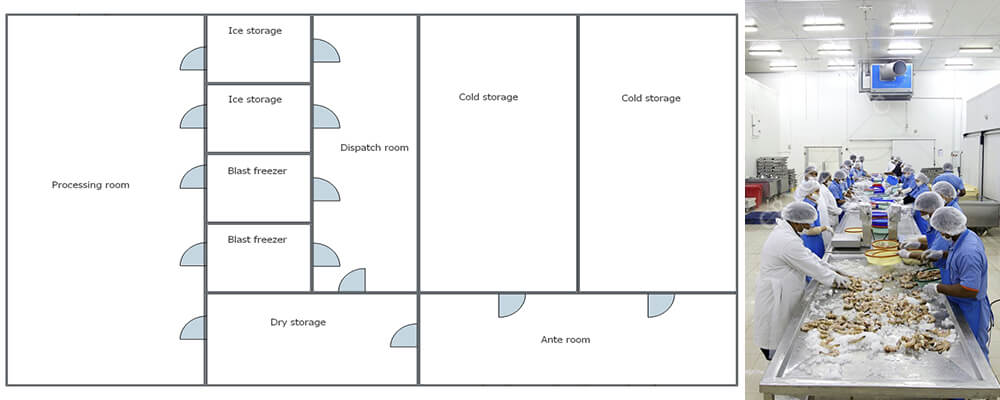

4# Rough drawing

Seafood processing plant, cold storage

5# Complete Cold Room Project Design

16 tons blast freezer for seafood

It’s consisted with 2 units air blast freezers, each provide 50% capacity. So we could have more flexible capacity. To ensure no corrosion problem, we use 0.5mm stainless steel on the 200mm cold room PU panels.

Refrigeration machines is one unit compressor rack, equipped with 4 units Bitzer two stages compressors, water cooled condenser, floor mounted blast evaporator.

30 tons Seafood Processing room

As the floor and wall would be cleaned by cholorine water every day, so we have to use better materials to prevent corrosion problem. Epoxy resin paint is a good choice.

20 tons ice machines:

It’s consisted with 2 units 10 tons ice machines, equipped with Bitzer semi hermetic compressors.

300 tons Freezer room for seafood

As all these seafood are packed in standard EU pallets, so we use pallet rack to maximum utilize the storage space.

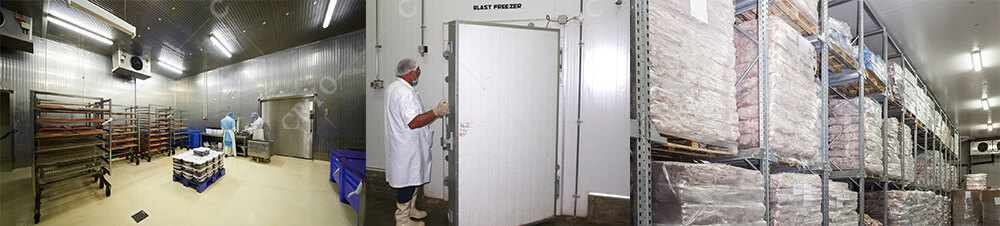

-40C Air blast freezer
