Only need do well in 4 parts of electric wire connection job for the bitzer condensing unit. It is easy.


For CRYO´s condensing unit, it is easy to do electric wire connection. You can refer to the wire diagram to connect. The wire diagram is already sent with the unit. If you still feel hard to understand the wire connection, you can contact us. We will help to connect.

Now, let us discuss the Bitzer condensing unit wire connection. As we all know, the complete equipment for a cool room includes one condensing unit, one evaporator, one control panel and one expansion valve. In addition to the expansion valve, all need to do wire connection.

electric wire connection

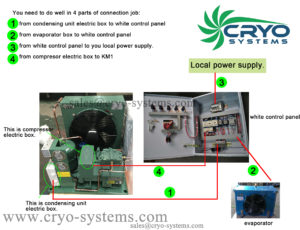

Four parts of the connection job:

1. from the condensing unit control box to the white control panel.

2. from the evaporator control box to the white control panel (the fan motor and defrost heater).

3. from the white control panel to your local power.

4. from the compressor motor box to the compressor contactor KM1.
